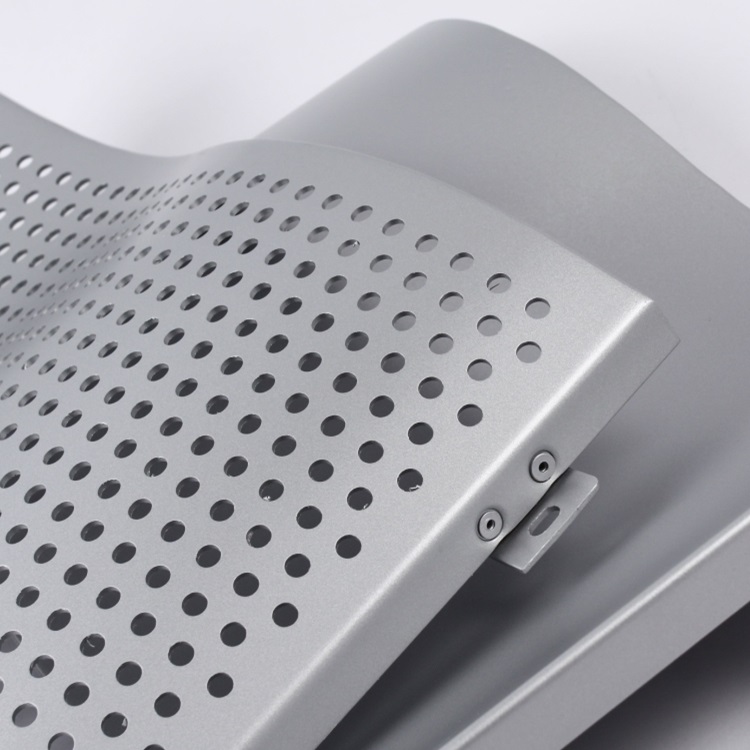

Aluminum Double Curved Panels

Aluminum alloy 5052, 3003, 1100
Panel thickness 2.0~5.0mm or customized thickness
Dimension 500mm<L<6000mm, 500mm<W<2000mm
Surface treatment PVDF 2/3/4 Layer coating (AkzoNobel/PPG)
powder coating (Powder/fluorocarbon powder)
Wood grain (wood grain paper/thermal transfer printing/wood grain painting)
Stone grain (stone grain painting/thermal transfer printing)
Color RAL color, Pantone color.
Warranty Max 25 years guarantee for ideal application environment

Arrow Dragon aluminum double curved panels are made of high-quality aluminum panels. With PVDF coating on the surface, the panels are protected from UV, temperature, humidity, and corrosion.

The aluminum double-curved wall panel is peculiar and complex that it requires sophisticated production equipment to make it. We use Germany-imported universal molding machine with dedicated double-sided software CNC, which can produce finished products in a short period of time. The equipment provides high precision, smooth surface, precision sewing, and detailed customization according to customers’ requests such as customizing any sizes of hyperboloid, spherical surface, create a unique 3D shape.



  • Lightweight, good rigidity and intensity.
  • Good weather ability and great corrosion resistance.
  • Easy for processing. It can be formed into different forms, such as the cambered plane, or spherical plane after processing and coating.
  • Coating uniform, varied color choices.
  • Sound insulation and heat insulation.
  • Strong earthquake resistance and fireproof.
  • Not easy to stain, convenient to clean and maintain.
  • Easy to install and cost-effective.
  • Recyclable, friendly to the environment.
National Library in Astana
Click here, shuttle to related project.


Exterior and interior for architecture application: wall cladding, façade, roof, column cover, ceiling, and different shapes of arts.

Advertisement and market applications: display platforms, signboard.
