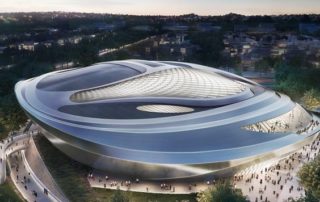

The building is located nearby the EXPO-2017 Exhibition Complex in Astana and follows the general futuristic style. The Congress Center together with the adjacent hotel facilities and Congress Office constitutes a uniform architectural ensemble. Due to the intricate fluent forms, the building symbolizes the dynamics of development of present and future achievements. The Congress Center of the 43,220 square meters total area has three floors above the ground and an underground parking lot. The height of the building amounts to 29 meters.

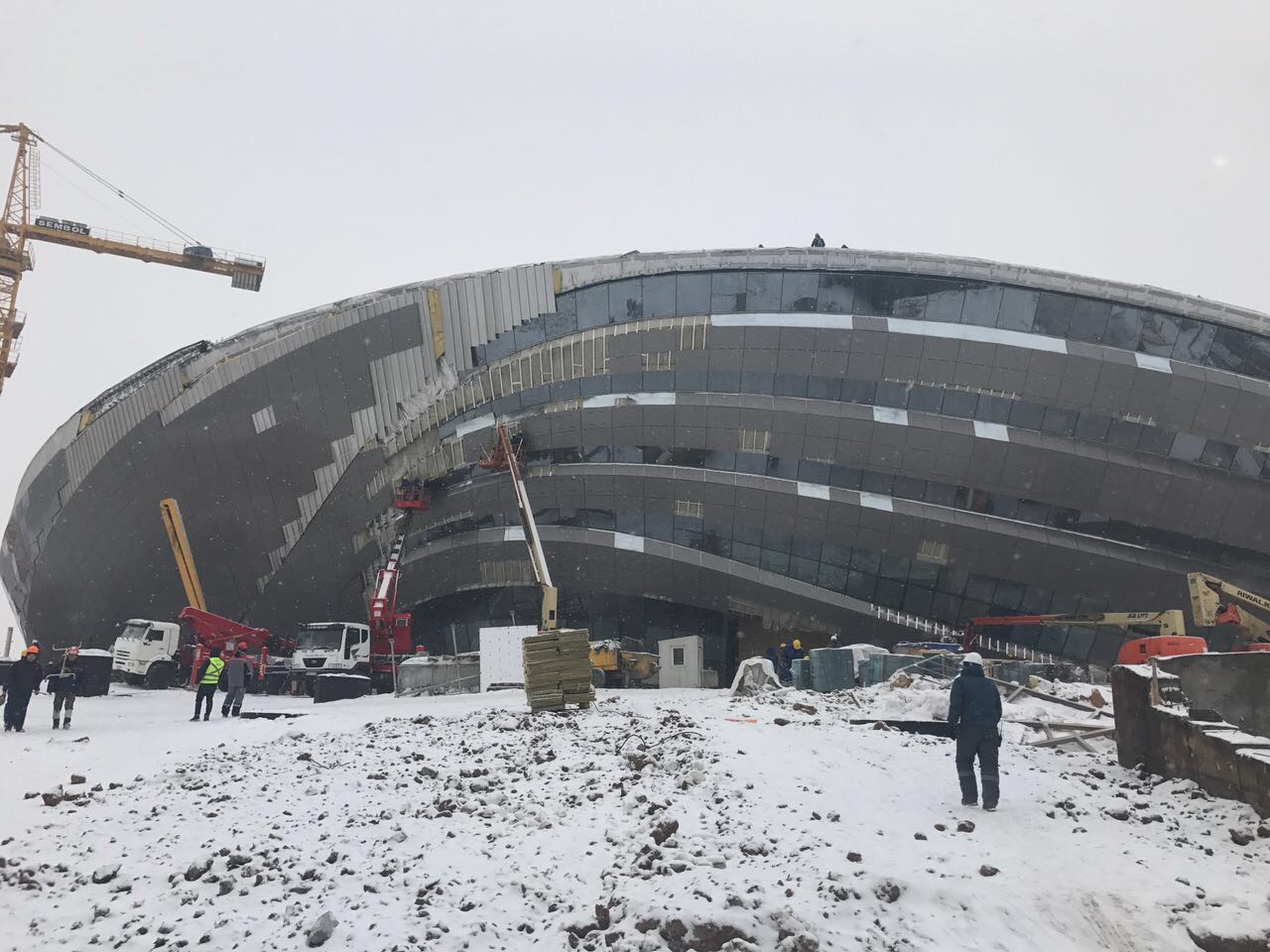

The exterior wall is constructed of 9880 pieces aluminum honeycomb panels of different shapes supplied by Arrow Dragon Metal Products.
14mm roller painting honeycomb panel, 0.7mm face sheet+12.6mm honeycomb core(A5*0,05) +0.7mm bottom sheet,
8mm roller painting honeycomb panel, 0.7mm face sheet+6.6mm honeycomb core(A5*0,05) +0.7mm bottom sheet
Area: 17,000m² (nearly 183,200ft²)
The lightweight panels add very little weight to the building, with gorgeous decorative performance.
With PVDF (fluorocarbon) coating, the panels with good weather ability and great corrosion resistance.
The double curved aluminum cladding panels are easy to install and cost-effective.
The panels are easy to stain, convenient to clean and maintain.
